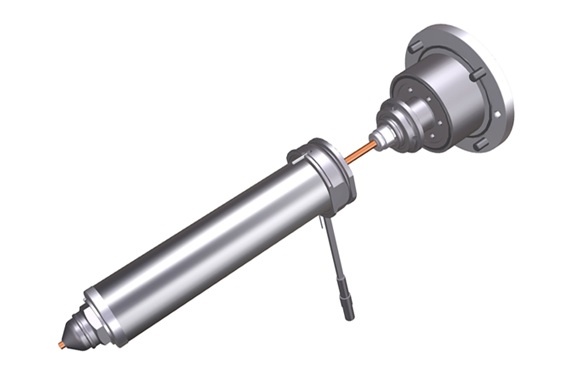

MVG55 Valve Actuator
For high speed multiple gating options with demanding materials, including those that contain fillers.

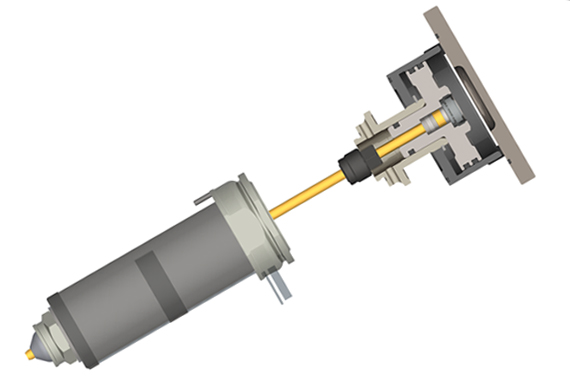

The MVG55 (Manifold Valve Gate) system is ideal for medium to large shot weight applications which require either simultaneous or sequential filling, or for cosmetic gates. The valve gate system produces faster cycle times, improved part strength and appearance with increased dimensional stability. Due to its high speed multiple gating options and lack of material traps, it will operate with the most demanding materials, including those that contain fillers.
The pneumatic actuated MVG55 is designed for easy installation and maintenance with the simple mounting in the backplate with integral airways. The MVG55 has the capacity to sequentially fill the part and the ability to manage weld lines.

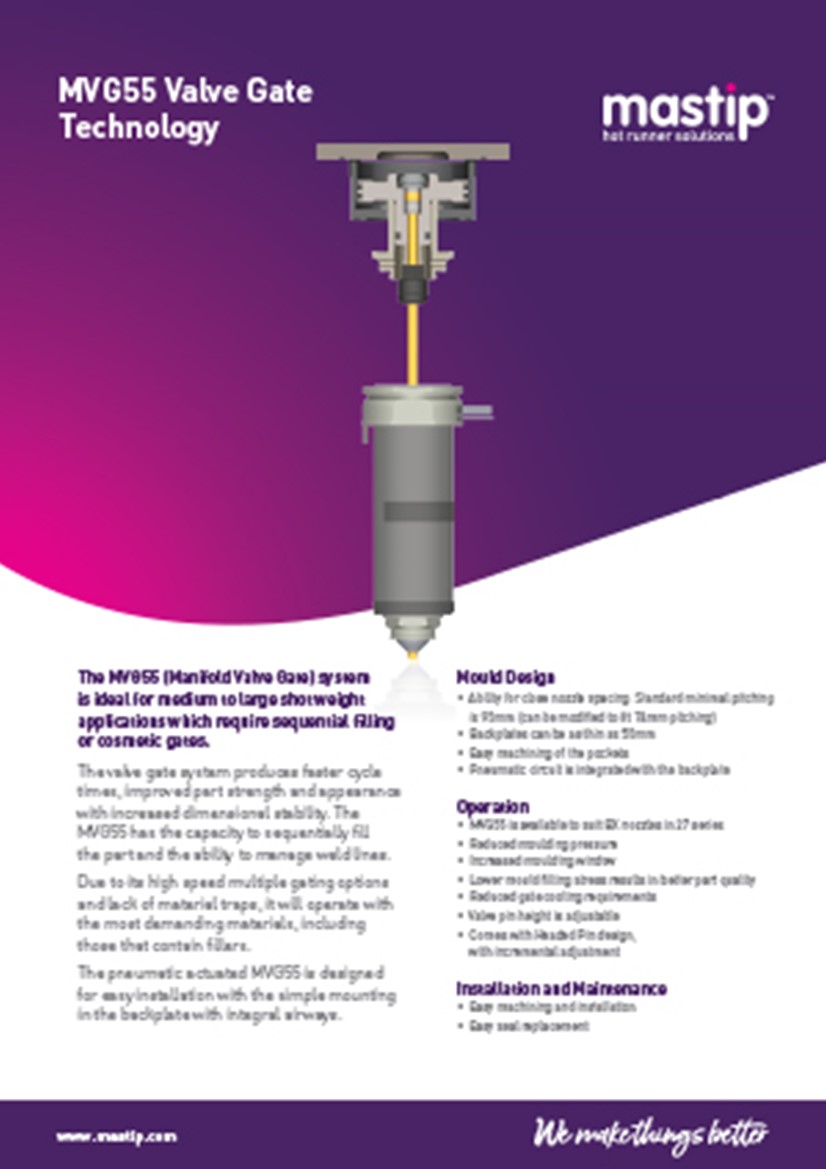

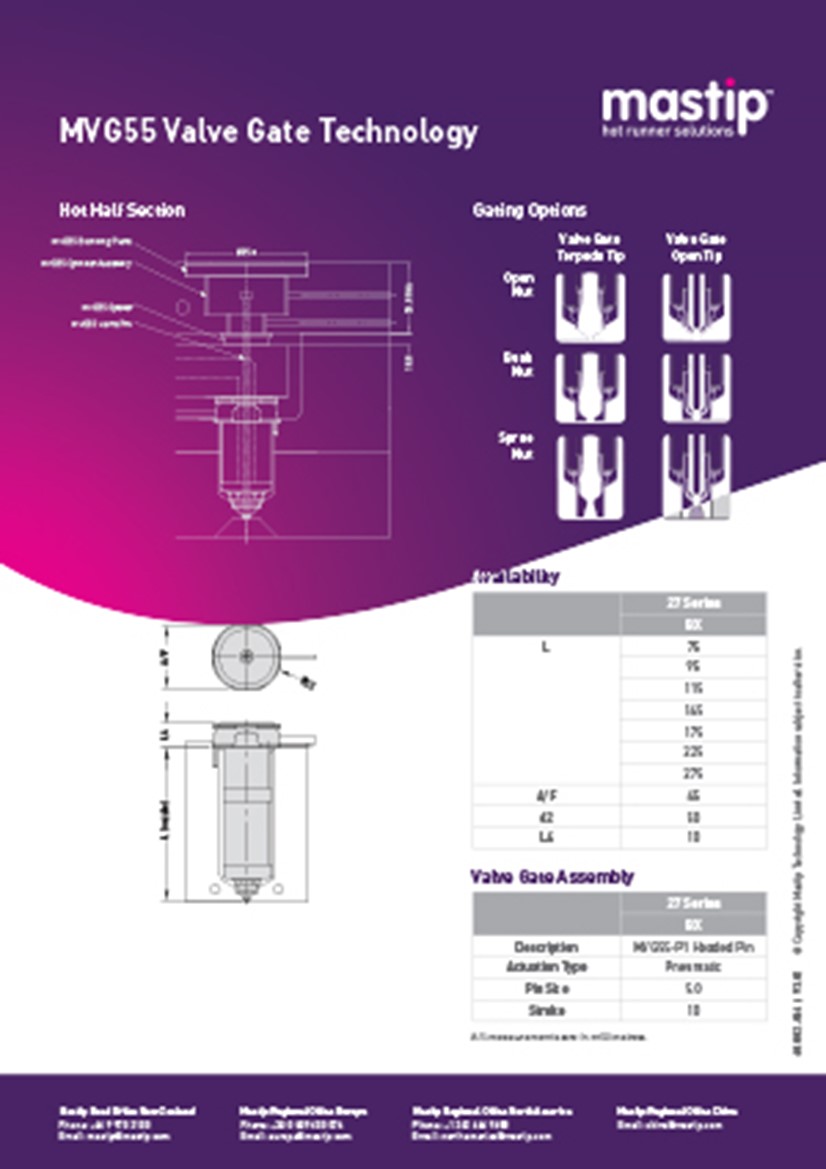

You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
