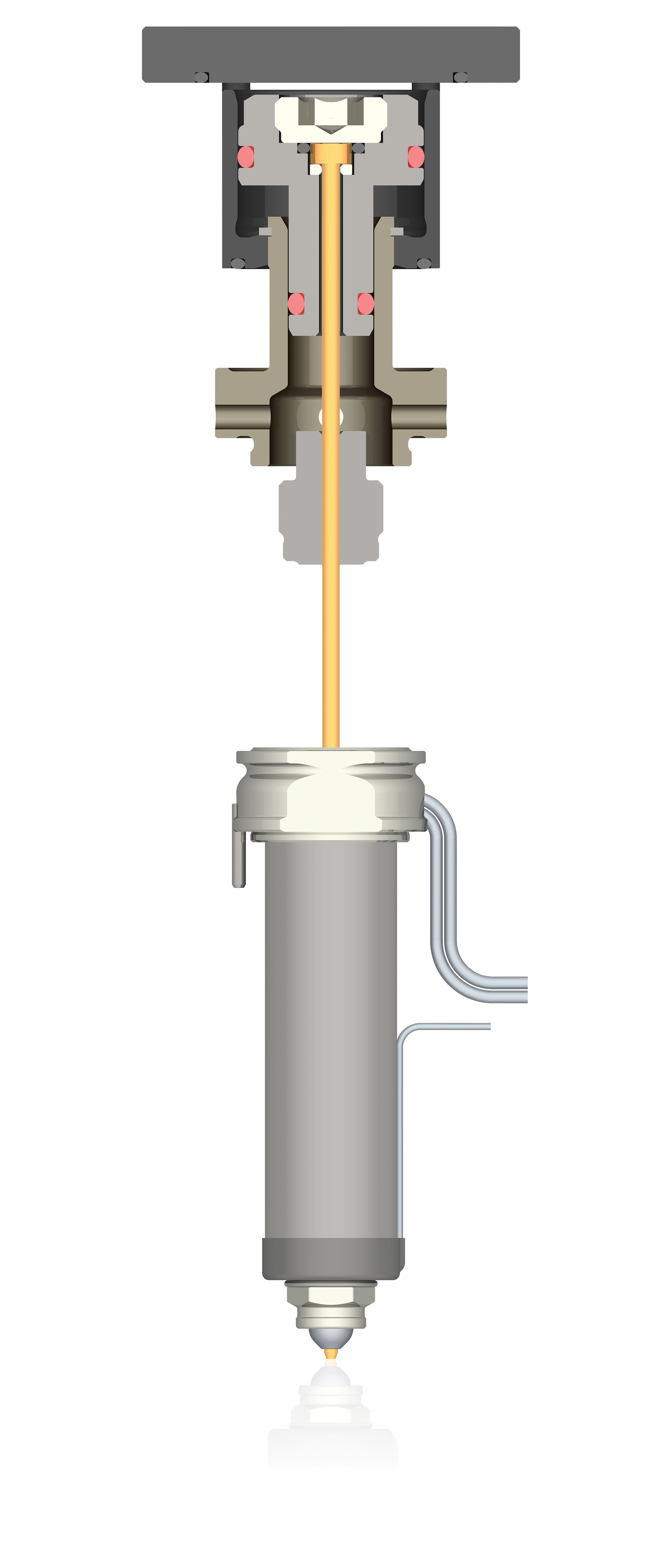

MVG25 Valve Actuator
For faster cycle times with the most demanding materials
The MVG25 (Manifold Valve Gate) system is ideal for small to medium applications which require close cavity, high speed, sequential filling or highly cosmetic gates. The MVG valve gate system produces faster cycle times, improved part strength and appearance with increased dimensional stability. Due to its multiple gating options and lack of material traps it will operate with most demanding materials.
The MVG25 is designed for easy installation and maintenance due to simple mounting in the backplate with integral airways.
Technical Information
-
Multiple Nozzle and Gate Options
The MVG25 incorporates the MX and BX 13-16 Series nozzle range in sizes ranging from 45-175mm in length with standard pitching of 55mm (can be modified to fit 43mm pitching on request). Gating options include either torpedo or open tips and open, bush or sprue nuts.
-
Technical Support at a Glance

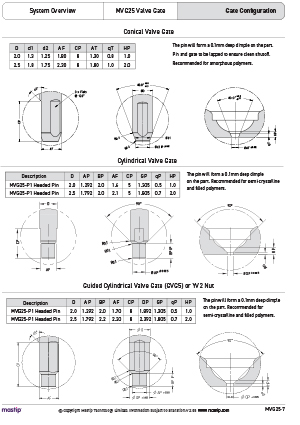

Mastip includes a comprehensive technical guide with all MVG systems to include the assembly overview, spacing layout, fitment, conical and cylindical recommendations and installation and pin adjustment guides.
The support continues throughout the life-cycle of the MVG with Mastip's global service and support network readily available to assist.
-

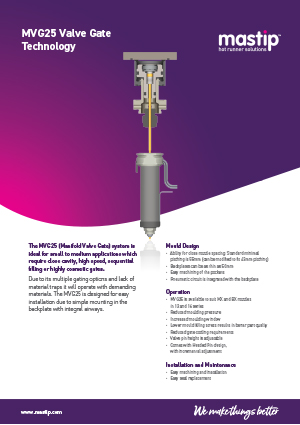

MVG25 Specification PDF Translations
Télécharger les spécifications PDF FRANCAIS
PDF-Spezifikationen herunterladen DEUTSCH
Scarica le specifiche PDF ITALIANO
Product Information
You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
