Cylix™ Hybrid
Valve Gate Actuation

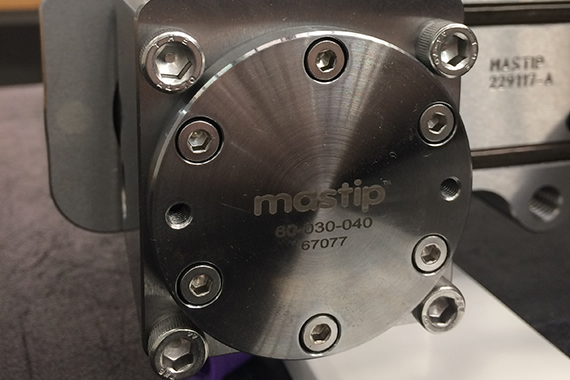

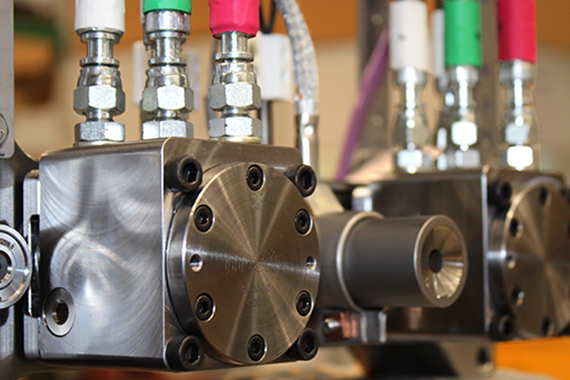

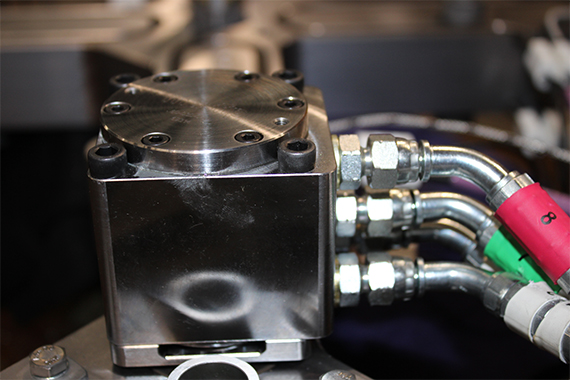

The Cylix™ Hybrid Cylinder features Pneumatic or Hydraulic Valve Gate Actuation in a thermally controlled system mounted directly to the manifold.
With the addition of Hydraulic actuation, the Cylix is now capable of high closing force making it suitable for high glass filled applications and large shot, thick wall applications that require longer cycle times.
Cylix is compatible with MX, BX and TX nozzle ranges and includes pin sizes ranging between Ø2.0, Ø2.5, Ø3.0 & Ø5.0.
Ideal for Small to Medium Automotive, Medium to Large Appliances and Large Part Electrical Applications
With the ability to adjust valve pin height and incorporating long life seals, it is the optimal solution for precise control of your moulding requirements.
Technical Information
-
Applications
• Ideal for small to medium automotive, medium to large appliances and large part electrical applications
• Suitable for high pressure applications
• Able to process both commodity and abrasive engineering grade polymers with fillers like glass fibre, carbon fibre or talc. -
Features
• Pneumatic or Hydraulic actuation
• Conical or Cylindrical Shutoff
• Ø2.0mm, Ø2.5mm, Ø3.0mm and Ø5.0mm Pin sizes
• High Temperature Valve Cylinders, hose and fittings

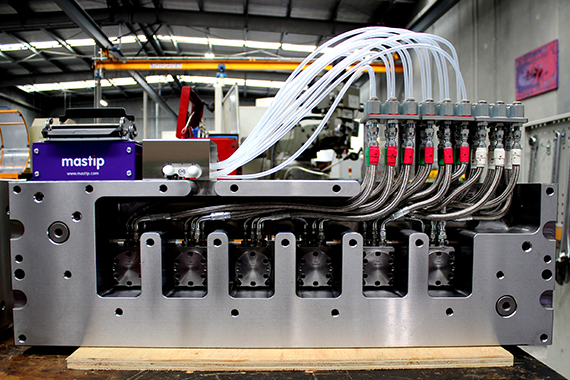

• Cylix™ Valve Cylinders mount directly to the manifold system -
Operation
• HVB40 is available to suit MX, BX & TX nozzles
• Thermally controlled cylinders
• Includes a Headed Pin design, with ability to incrementally adjust pin height via valve pin adjustment packers

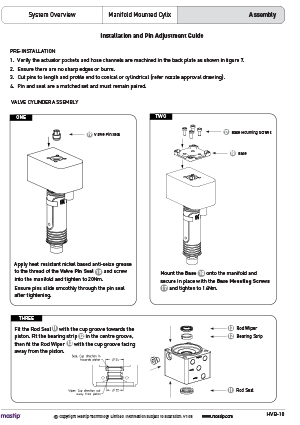

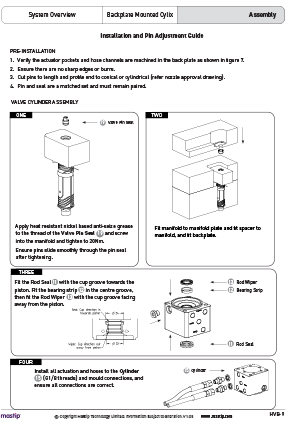

Installation and Maintenance
• User-friendly maintenance and easy serviceability
Product Information
You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
