FlowLocᵀᴹ Technology Range
FlowLoc™ Technology

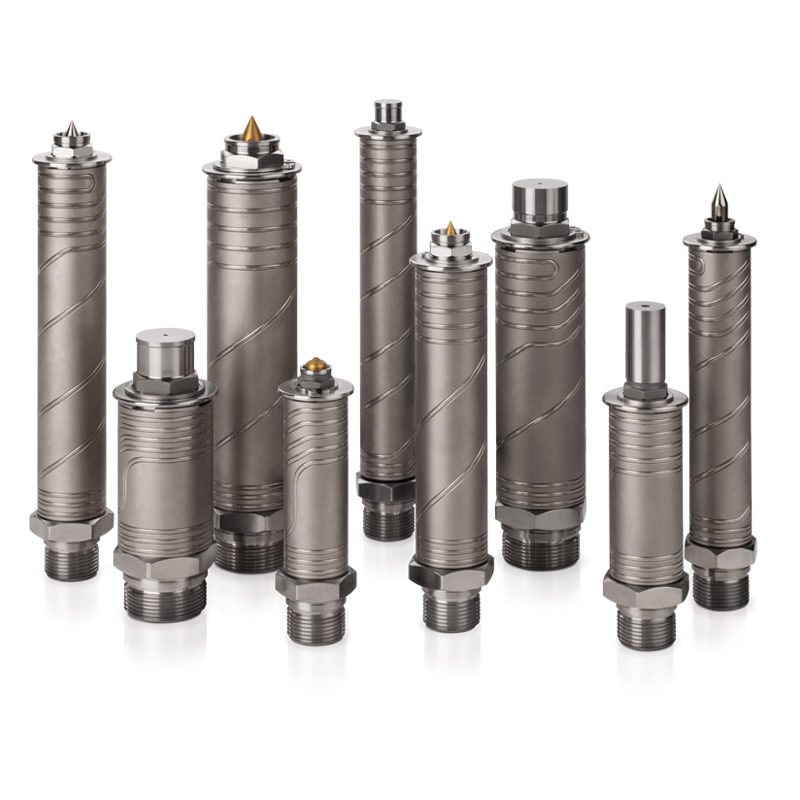

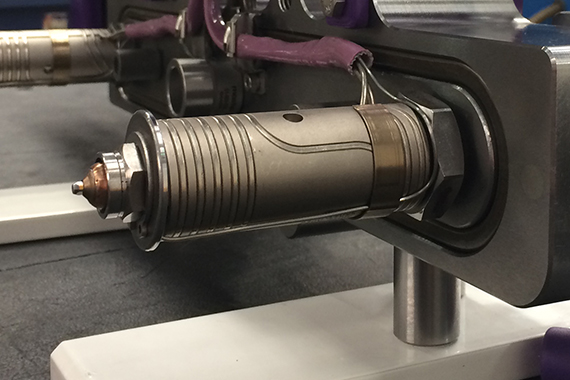

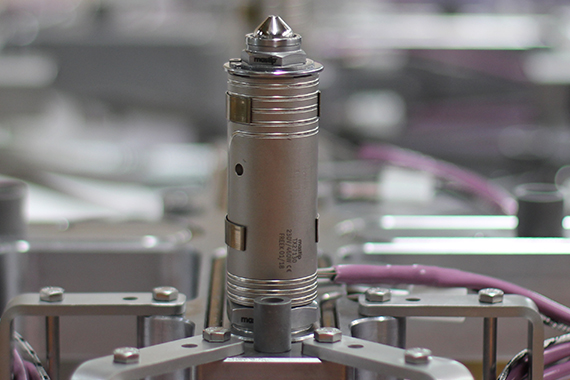

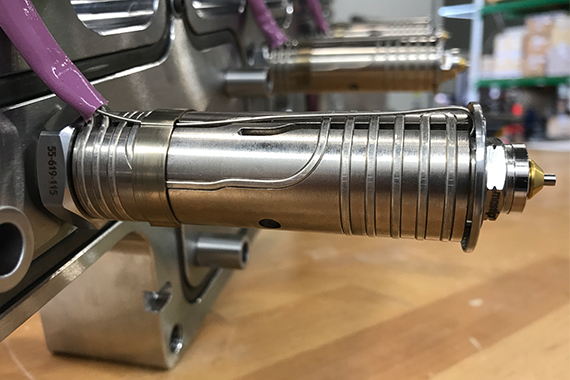

The FlowLocᵀᴹ Technology Nozzle Range is designed to provide a secure, leak-proof solution for multi-cavity manifold systems. FlowLocᵀᴹ incorporates advanced heating technology with embedded heaters for exceptional thermal performance. The FlowLocᵀᴹ Range is ideal for Mastip’s next generation Nexusᵀᴹ Systems and VeriShotᵀᴹ Single Valve Gate Solutions.
FlowLocᵀᴹ Technology is suitable for a wide range of applications including small to medium automotive, medium to large appliances, large packaging and large part electrical.
Technical Information
-
TX Standard Available Lengths
Series Nozzle Lengths 16 Series 75 85 95 105 115 130 145 160 175 200 225 250 19 Series 75 85 95 105 115 130 145 160 175 200 225 250 275 300 27 Series 75 85 95 105 115 130 145 160 175 200 225 250 275 300 350 400 450 All measurements are in millimetres.
Available in 420 steel.
Product Information

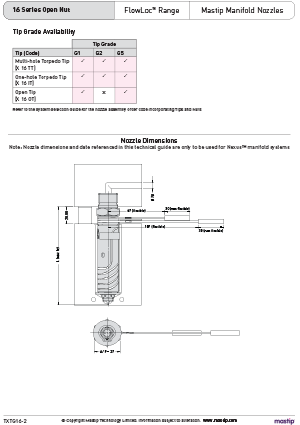

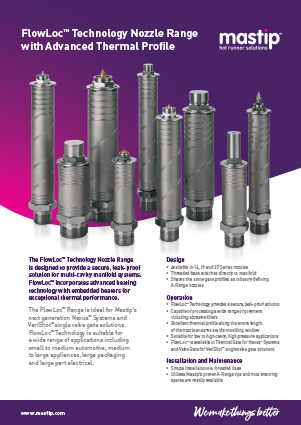

You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
