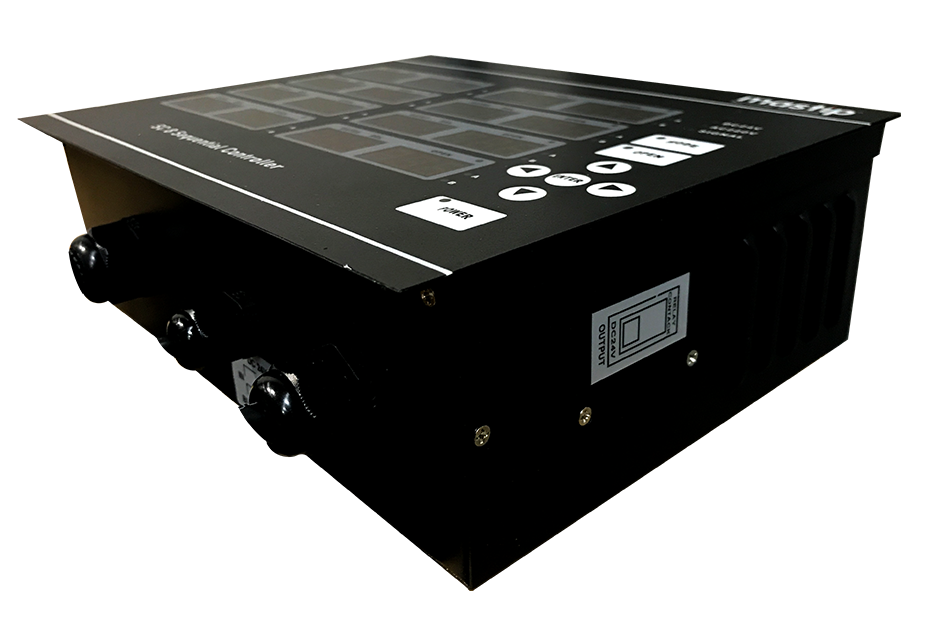

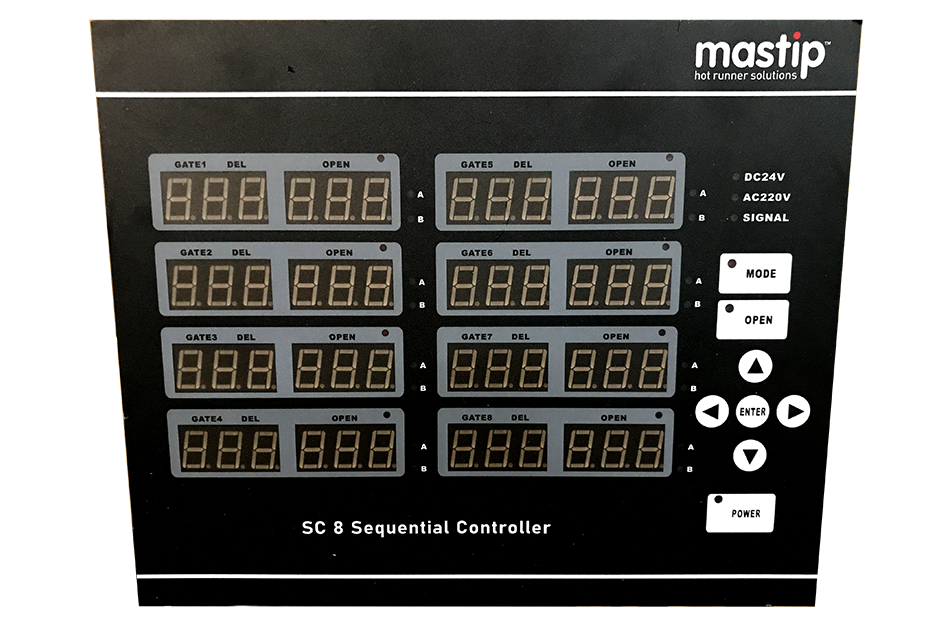

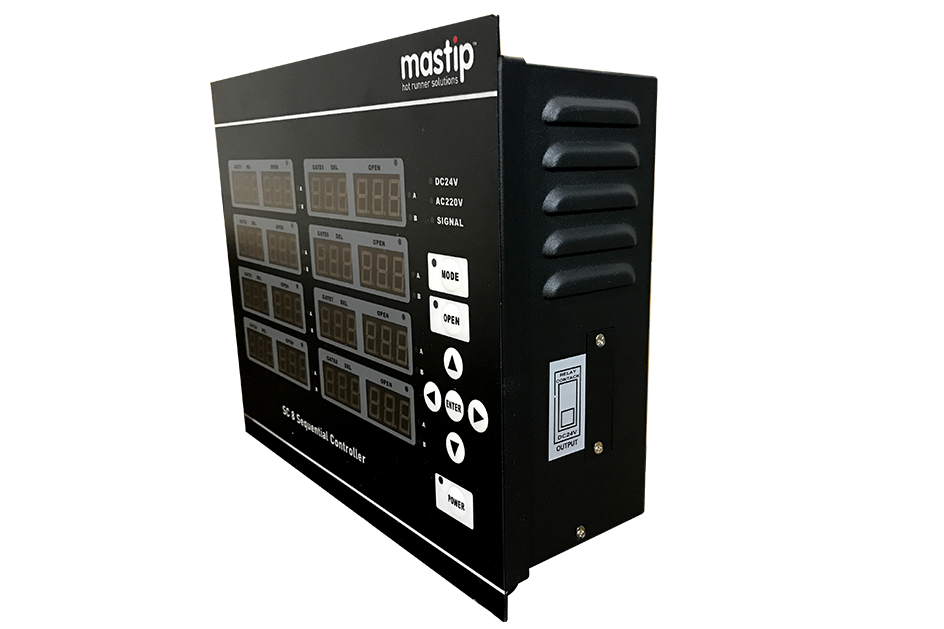

MetiCom SC8
Easy to set up, simple to operate, individual control for each valve gate.
The SC8 Integrated Sequential Control System provides the ideal economic solution for sequential filling of your part when using up to 8 zones of pneumatic actuation. This allows optimum fill characteristics when using a valve gate hot runner system.
The SC8 is easy to set up, simple to operate and enables you to individually control the opening and closing of each valve gate.
Technical Information
-
Technical Specifications
Mains Input Power Single phase AC 220V (50/60 Hz) Injection Single Input Power Supply DC24V, AC220V Solenoid Output Power Supply Single voltage, 100mA / Zone Operating Temperature Range 0ºC to 55ºC Operation Modes Mode A, Mode B, Mode AB Automatic Input Voltage Yes Manual Override Yes -
Default Settings
No. Name Default Settings 1 Gates in Shut off State No 2 Injection Signal Output DC24V or Customised 3 Gate Output Type DC24V or Customised 4 Operating Mode Mode A 5 Delay Time 5.0 s 6 Open Time 6.0 s 7 Time Range 0.0~99.9s
Product Information
You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
