Multi Gate
Designed for Challenging Situations
Mastip’s Multi-Gate solutions are engineered specifically for challenging applications requiring close pitch gates in restricted areas where conventional gating methods aren’t possible. Multi-Gate tips are constructed of a highly conductive alloy ensuring an excellent thermal profile. They are designed to allow for balanced flow achieving simultaneous filling via direct side gating and direct axial gating. Multi-Gate applications are suitable for processing polyolefin polymers and are available in various configurations to suit the number of gates required and part design.
Technical Information
-
Axial and Side Gates are available in nozzle combinations with Mastip’s manifold range (BM) and single nozzle range (SM)
Applications:• Perfect for long, thin walled parts like syringe barrels, pipettes and needle shields
• Ideal for precision medical and high volume caps and closures moulding
• Internal side gating on round parts for balanced filling

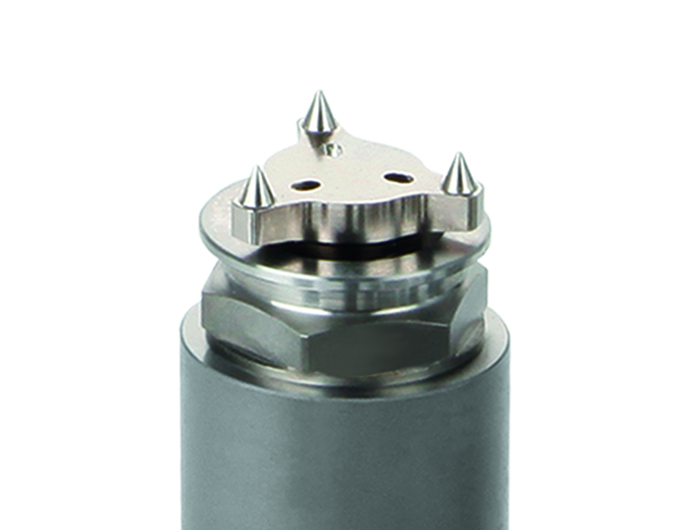

• Multiple direct axial gates per part for complex part design
-
M-Range Overview
The M-Range nozzles are designed specifically for multi-gate solutions incorporating proven BX/SX technology
Features:
• Supplied as multi-drop manifold systems (BM) and single nozzles (SM)
• Excellent temperature profile and thermal stability
• Direct side gating in compact moulds
• Optimised mould layout resulting in more cavitation
• Easy tip replacement in moulding machine
• Cost efficient solution eliminating cold runner waste
-

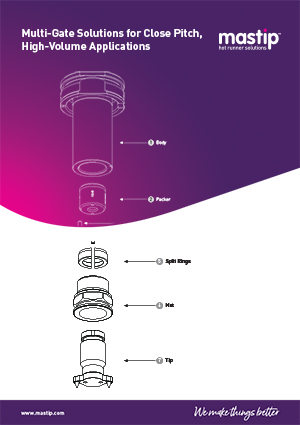

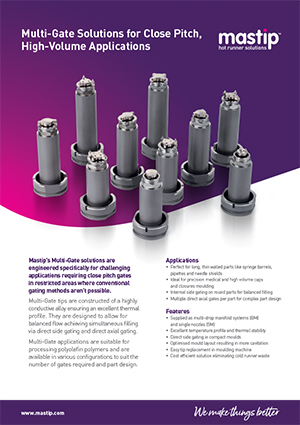

Multi-Gate Specification PDF Translations
Télécharger les spécifications PDF FRANCAIS
PDF-Spezifikationen herunterladen DEUTSCH
Scarica le specifiche PDF ITALIANO
Product Information
You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
