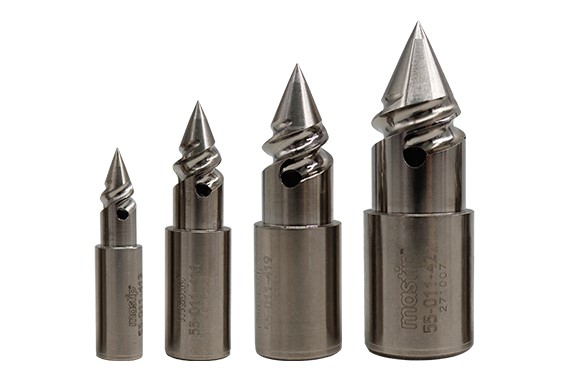

Spiral Tip
Ideal Solution for High Cavity Moulds with Frequent Colour Changes
Mastip brings an innovative new product to the hot runner market with its spiral tip technology, designed specifically to enhance colour change performance.
The Spiral Tip is part of the X-Range nozzles available in 13, 16, 19 and 27 series, and is supplied as a G2 grade tip providing extended life.

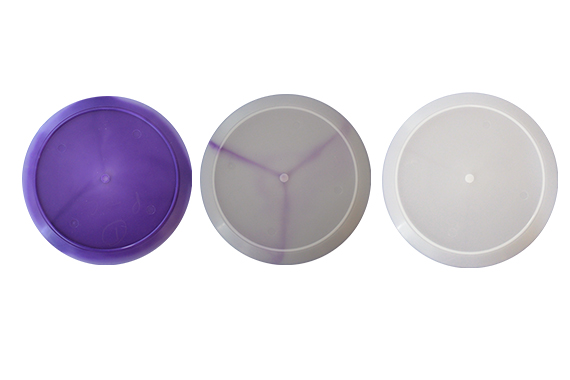

With its unique spiral design, the tip disrupts the polymer flow throughout the entire gate well, ensuring faster and more efficient colour changes.
This both improves production efficiency and reduces material waste, making it an ideal solution for high cavity cap and closure moulds with frequent colour changes.
Technical Information
-
Applications
• Frequent colour change
• Processing pearl or glitter polymers reducing flow lines
• Smaller gate vestige due to G2 tip
• Thermal gate applications
• Available with open nuts and bush nutsFeatures
• Fully interchangeable with current ‘X’ Range of Torpedo Tips
• Spiral tips feature the G2 tip with a wear-resistant point for enhanced durability
• Spiral design for more efficient colour changePerformance
• The spiral tip can improve colour efficiency by up to 50%
• Nuts manufactured from 420 corrosion resistant stainless steel -

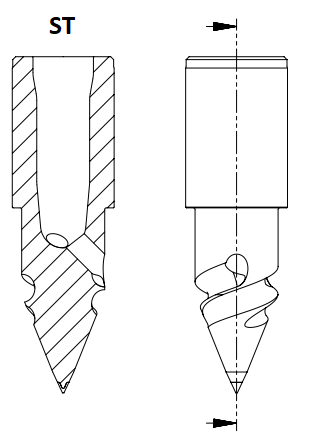

Internal View
Product Information

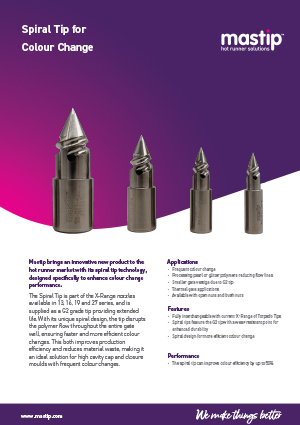

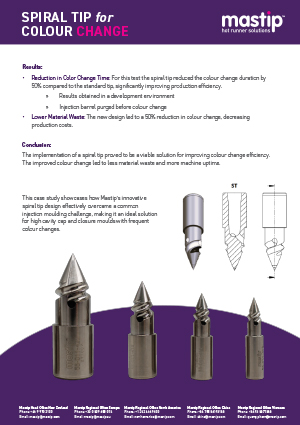

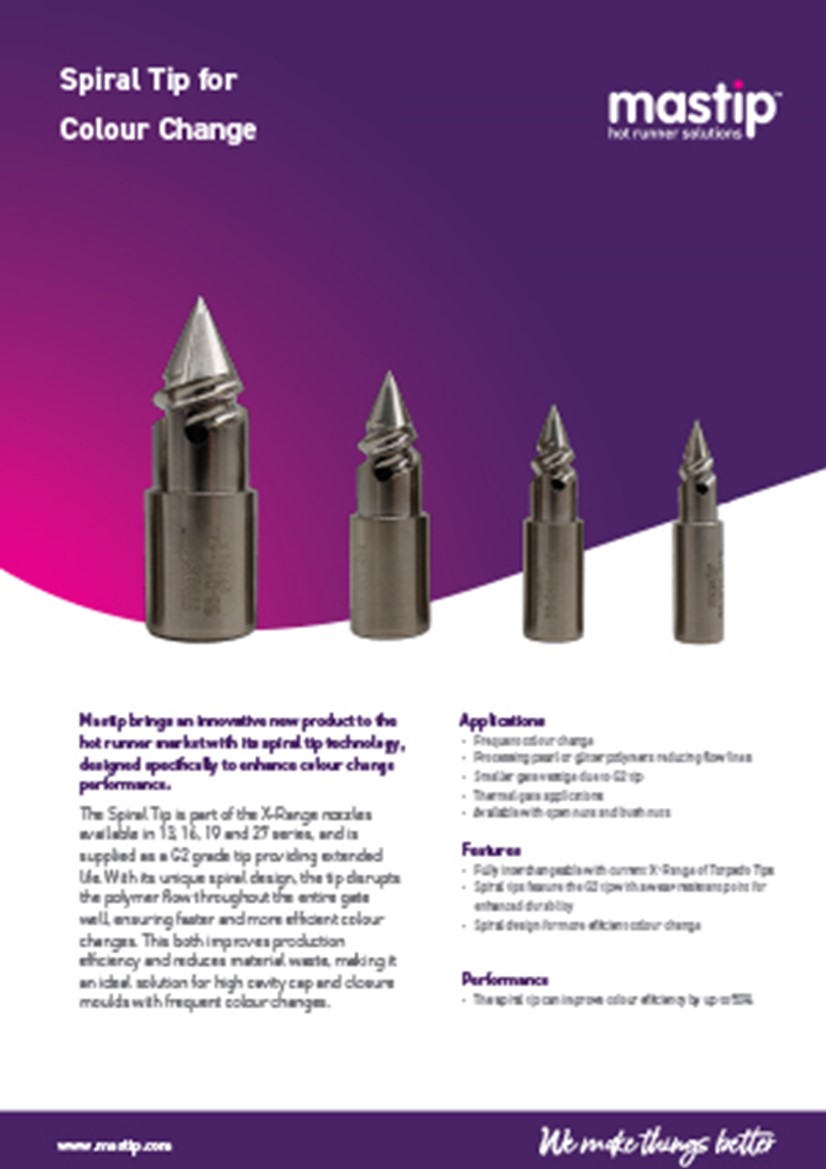

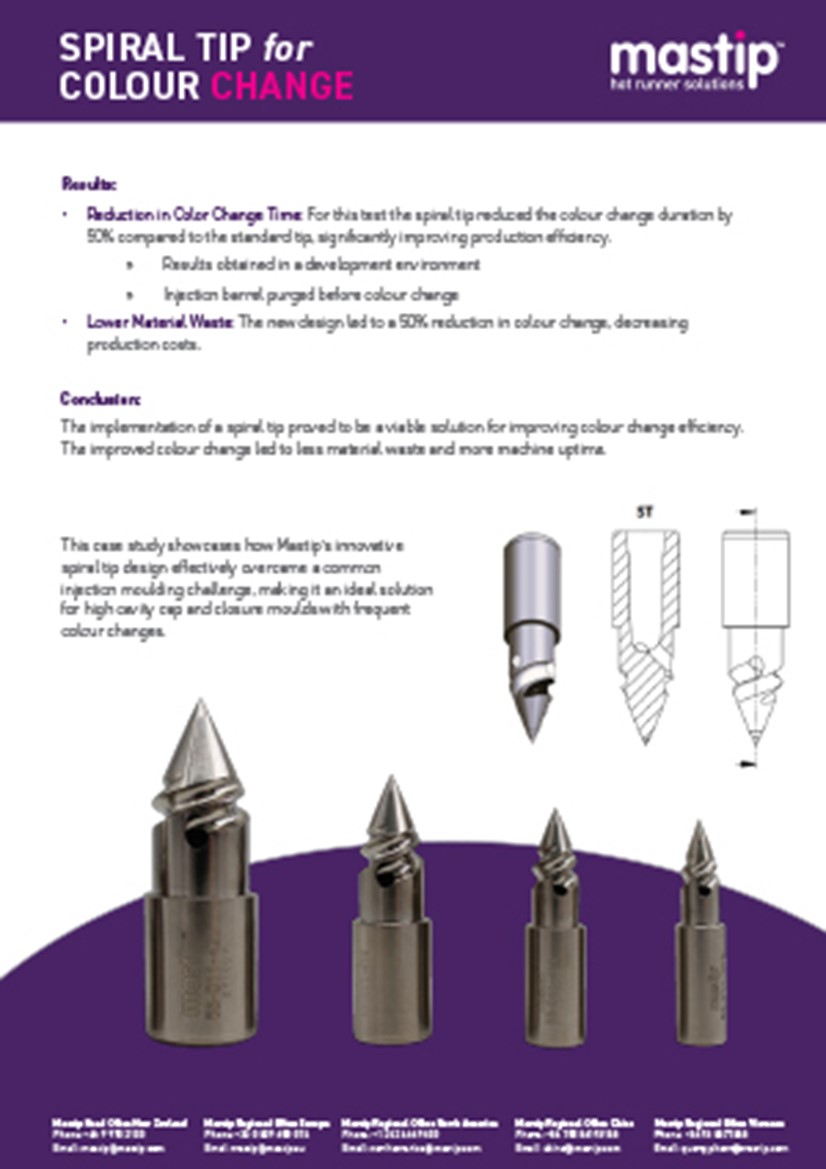

You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
