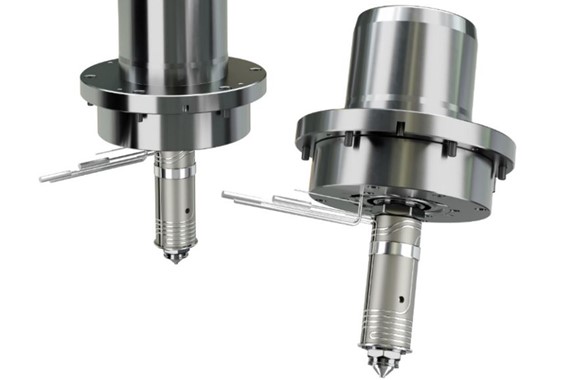

VeriShotᵀᴹ Single Valve Gate System
►Compact ► Precise ► Stainless Steel
Sporting an extremely compact design, the VeriShotᵀᴹ system greatly reduces mold height requirements as it doubles as a locating ring housing the mechanics. This ensures perfect alignment between mold and machine platens.
Pre-assembled, VeriShotᵀᴹ features Mastips FlowLoc™ threaded leak proof nozzles with advanced heating technology for optimum control, providing exceptional thermal performance for improved part quality making it ideal for applications requiring a highly cosmetic gate finish, fast flow rates, large volume parts, and dimensional accuracy.
Technical Information
-
VeriShotᵀᴹ is compatible with TX16, TX19 and TX27 FlowLoc™ nozzles, which screw directly into the lower manifold providing a secure, leak-proof solution.
With Stainless Steel construction for maximum service life, with a reduced mould height at 54mm+ nozzles.
The location ring can be sized to your requirement
Hot Half Section
-
Gating Options
Nozzle Availability
All measurements are in millimeters.
* Further nozzle lengths are available on request
Locating Ring Diameter
Available as standard sizes in Metric - 100mm-125mm and Inch - 4”-5” with further diameters available on request.
-
VeriShotᵀᴹ Specification PDF Translations
Télécharger les spécifications PDF FRANCAIS
PDF-Spezifikationen herunterladen DEUTSCH
Scarica le specifiche PDF ITALIANO
Product Information
You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
